The React UI

The Ambient window hosts one React page. src/window.rs creates the window, installs the web view as its content view, and retains AppKit’s activation policy and menu actions. src/settings.rs owns the request/response bridge, native dialogs and the diarization worker. Closing the window returns Ambient to the menu bar without stopping a recording.

Build and check

pnpm --dir ui install --frozen-lockfile
pnpm --dir ui check
pnpm --dir ui lint
pnpm --dir ui test
pnpm --dir ui build
scripts/check
cargo run --bin windowcheck
cargo run --bin uicheck -- docs/developing/img/ui-light.png light
cargo run --bin uicheck -- docs/developing/img/ui-dark.png dark

Vite inlines scripts and styles into assets/settings.html, which Rust embeds at compile time. Commit that file with every UI change. A subsequent build must leave git diff --exit-code assets/settings.html clean. No resource is fetched at runtime.

windowcheck uses the real host and dispatcher with disposable sessions. It checks transcript rendering, phase updates, selection, Stop, Settings and File menu dispatch without opening an audio device. uicheck uses canned replies to exercise exports and Settings, then scrolls 2,000 sessions and saves a PNG. It checks fewer than 300 mounted rows and less than 16 ms of elapsed work per sample, including the timer wait and layout read. These are local measurements, not a guarantee for every Mac. Native save panels and audio grants still need interactive checks in the signed app.

Routes and state

App asks init for the starting route and listens for navigate. Sessions loads the session summaries; Settings edits the same config and roster as the CLI. Welcome appears for an empty library or a failing doctor check. Its inline fixes are checked against troubleshooting by a component test, and Settings remains reachable while health fails.

The page retains selection, filters and unsaved drafts. Persisted values come from API replies and are requested again after a mutation. useLatest drops old responses and failures when a newer request supersedes them. Phase events update the live card; phase transitions refresh summaries. Diarization events refresh both transcript text and unnamed speaker controls.

Session rows are 56 px high and month headers are 28 px. The sidebar renders the viewport plus ten entries on either side, with arithmetic spacers for the rest. Long names and tags truncate within the fixed row. Text and tag filters reset the scroll position; arrow keys move selection and focus across virtual rows. The live card sits above the scrolling list.

The live card is never empty. Idle, it offers Record (⌘R), names the microphone a recording would use, and says when the saved device is unplugged, since capture then falls back to the system default. Rust sends no event for a device change, so the window re-reads config.get on focus, on becoming visible and on each phase edge. When apps is empty it says no call apps are watched and links to Settings, because an empty list never arms (ADR 0009). Armed, it asks “Record this call?”. Recording, it shows a red dot, the clock and the live session’s name, which opens its live transcript. A recording that starts selects its session once, on the phase edge, so choosing another session mid-recording sticks.

Appearance and shortcuts

The page uses system fonts, the neutral theme, a 0.5 rem radius, 13 px body text and 11 px secondary text. The sidebar is 260 px wide and transcript text is limited to 68 characters. Focus rings remain visible for keyboard use; reduced-motion preferences disable animations and transitions. Appearance follows macOS through prefers-color-scheme; the probe can force an appearance for screenshots without adding a user-facing toggle.

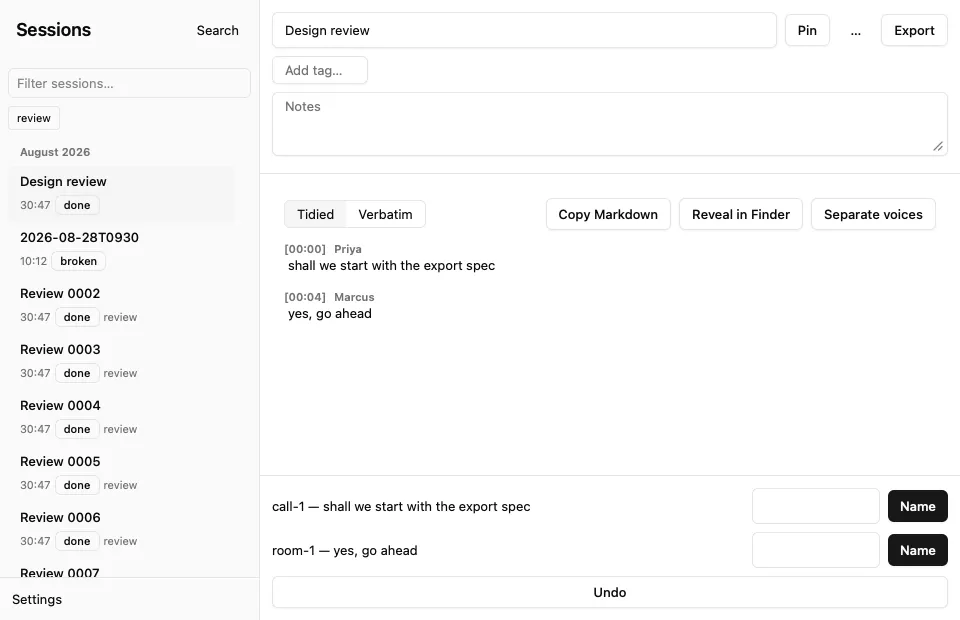

The following screenshots come from the built page in a real WKWebView with synthetic sessions.
